Four families.
Forty-seven models.
Piston pumps, swing motors, travel drives and the control valve family. Specifications are taken from the FLUTEK English catalogue dated 2024-11-25, and each model page states its own source.
This is the short list we stock and diagnose. The full 47-model catalogue, with data sheets and 3D files, is on the official site.
The official catalogue on flutek.com ↗Piston pumps
24
K3V112DTP
K3V112 / K5V140 tandem series, 20–25 t hydraulic excavator
- Displacement
- 112 mL/r (per pump)
- Rated pressure
- 34.3 MPa

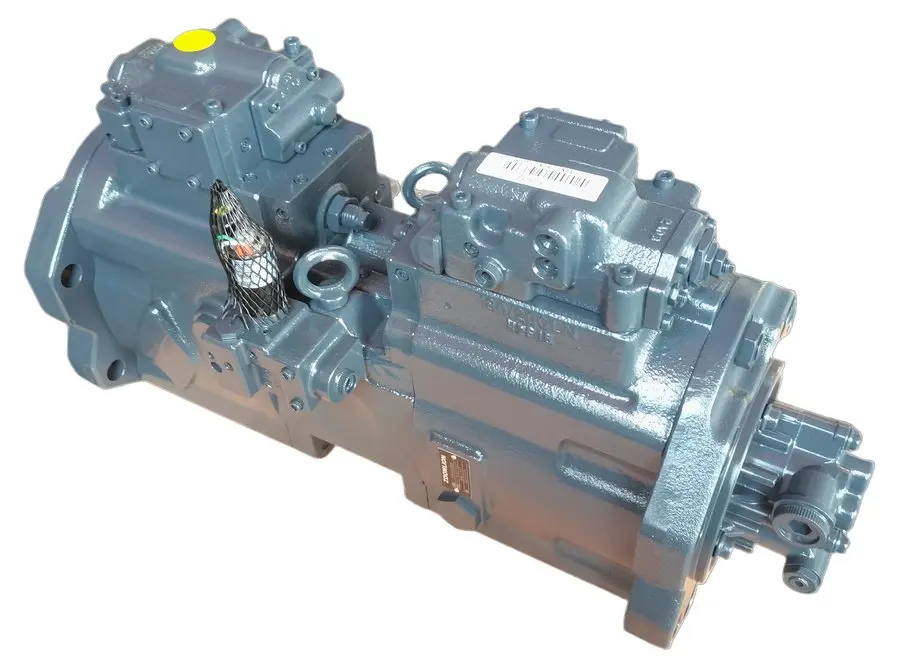

K5V140DTP
K3V112 / K5V140 tandem series, 27–33 t hydraulic excavator
- Displacement
- 140 mL/r (per pump)
- Rated pressure
- 34.3 MPa

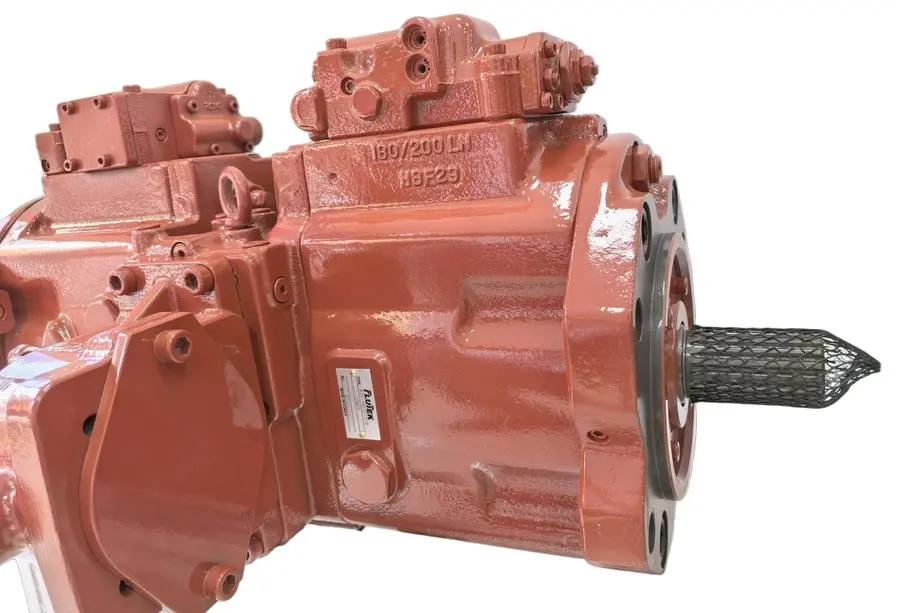

K3V140DTP
K3V140 / K3V180 / K5V160 tandem series, 27–33 t hydraulic excavator
- Displacement
- 140 mL/r (per pump)
- Rated pressure
- 34.3 MPa

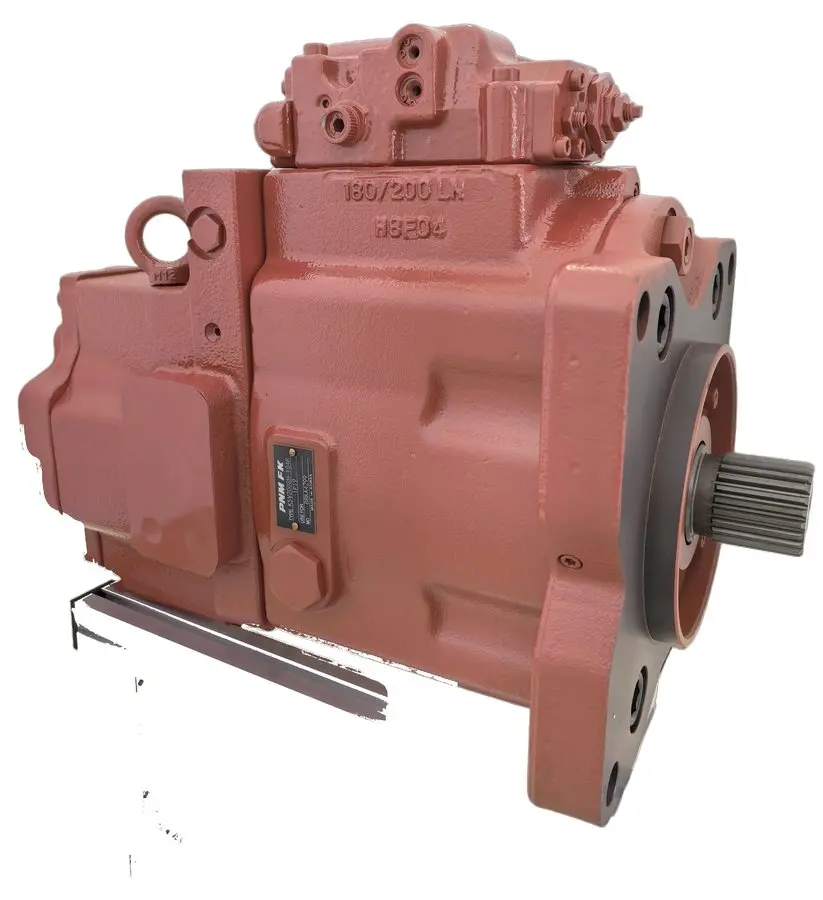

K3V180DT
K3V140 / K3V180 / K5V160 tandem series, 36–40 t hydraulic excavator
- Displacement
- 180 mL/r (per pump)
- Rated pressure
- 34.3 MPa

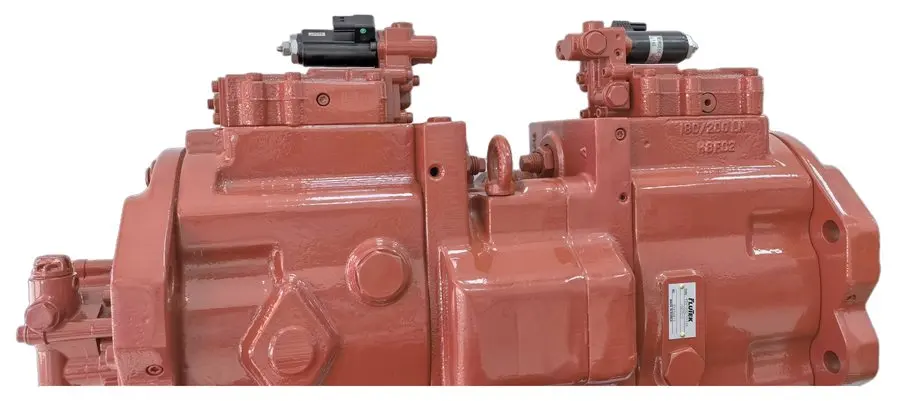

K5V160DTH
K3V140 / K3V180 / K5V160 tandem series, 36–40 t hydraulic excavator
- Displacement
- 160 mL/r (per pump)
- Rated pressure
- 34.3 MPa
K5V200DTH
K3V180 / K5V200DTH tandem series, 40–45 t hydraulic excavator
- Displacement
- 200 mL/r (per pump)
- Rated pressure
- 34.3 MPa

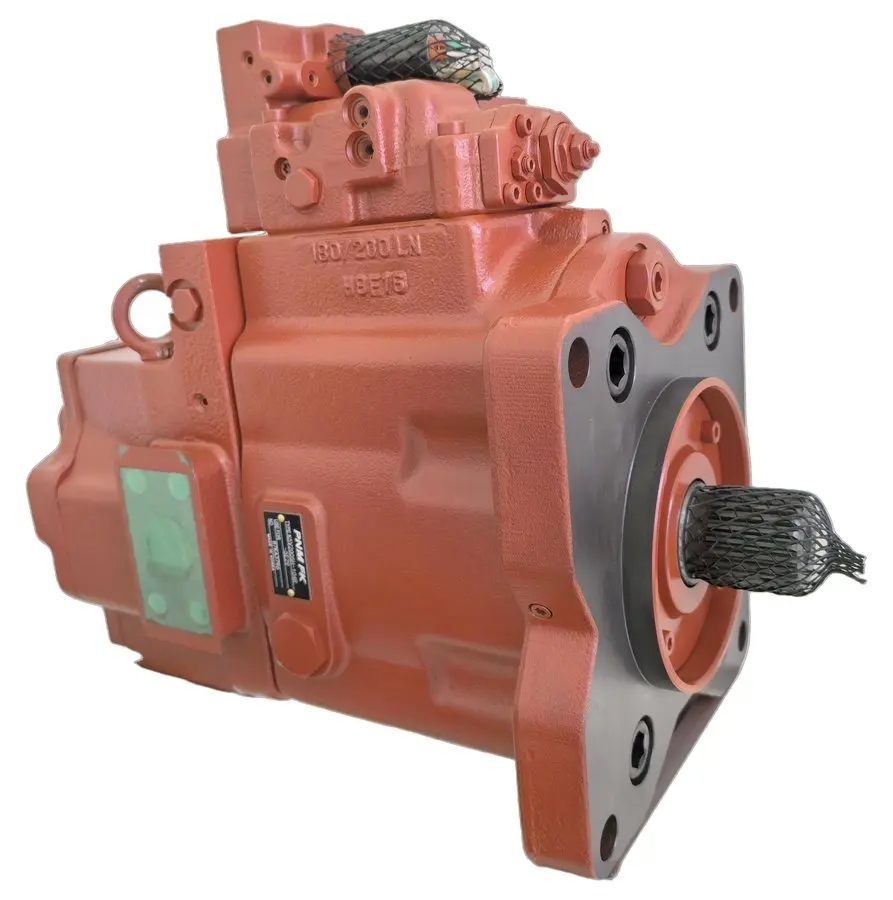

K5V200SH
K5V200SH single pump, single pump / front pump of a combined set
- Displacement
- 200 mL/r
- Rated pressure
- 34.3 MPa

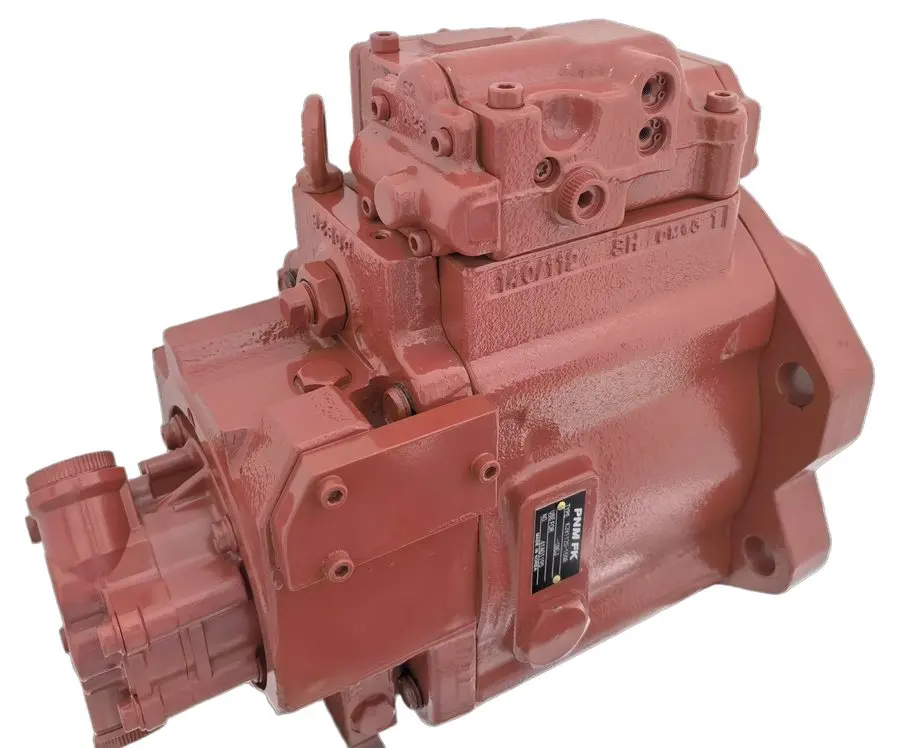

K3V63S
K3V63S single pump, 6–10 t hydraulic excavator and industrial open circuits
- Displacement
- 63 mL/r
- Rated pressure
- 34.3 MPa

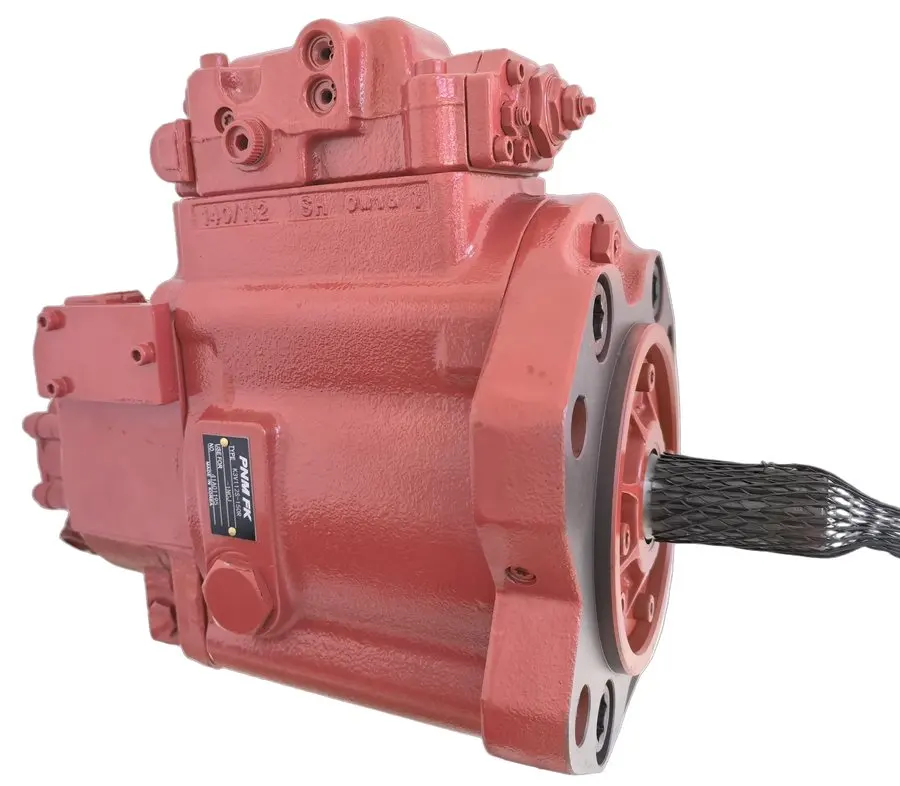

K5V80S
K5V80S single pump, 6–10 t hydraulic excavator and industrial open circuits
- Displacement
- 80 mL/r
- Rated pressure
- 34.3 MPa

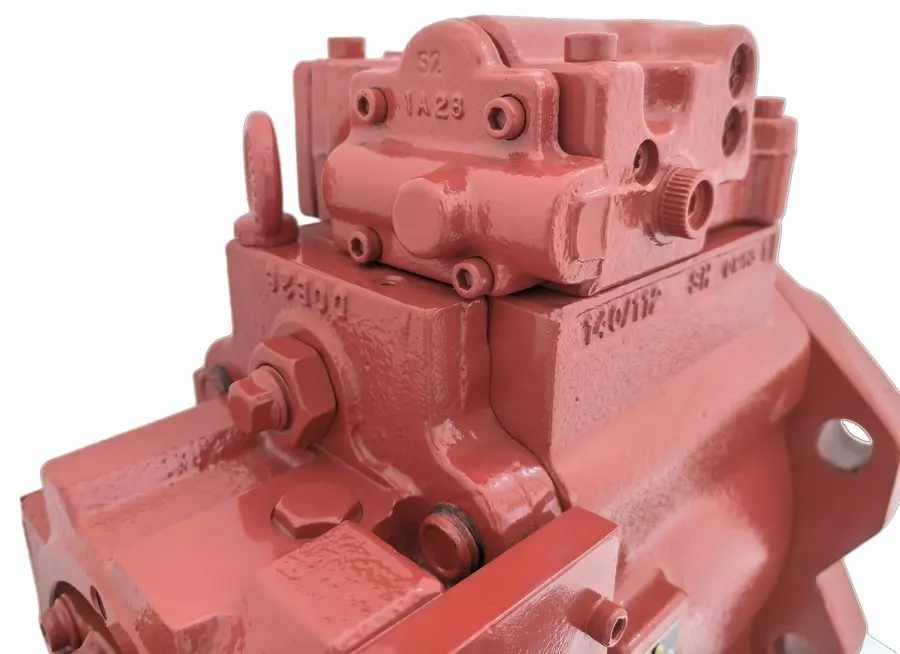

K3V112S
K3V112S single pump, 10–12 t excavator and industrial open circuits
- Displacement
- 112 mL/r
- Rated pressure
- 34.3 MPa

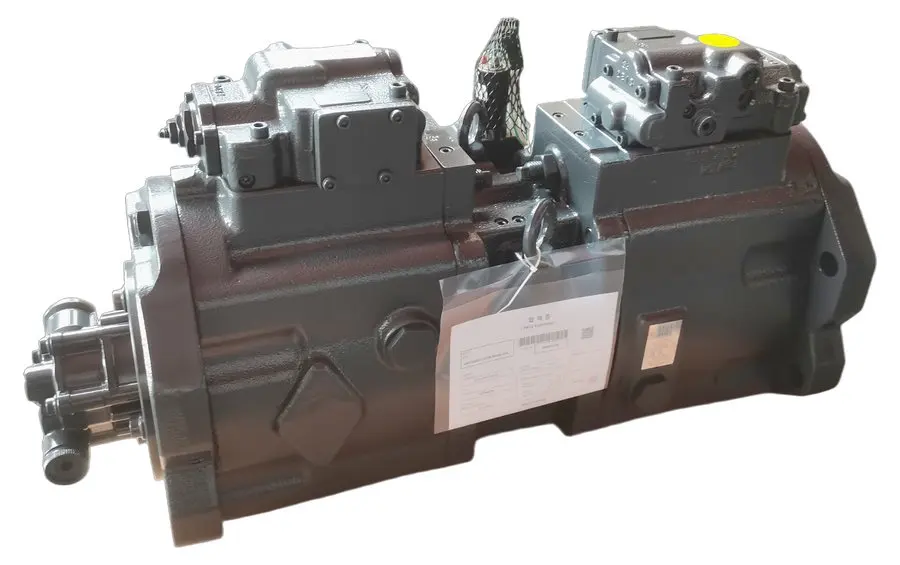

K5V140S
K5V140S single pump, 10–12 t excavator and industrial open circuits
- Displacement
- 140 mL/r
- Rated pressure
- 34.3 MPa

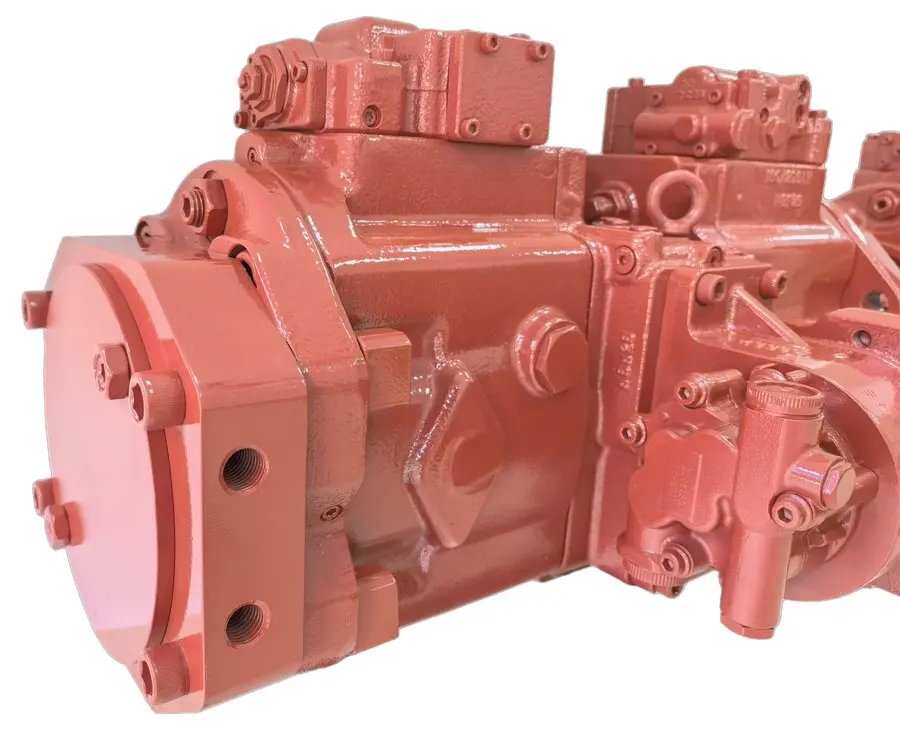

K3V140S
K3V140S single pump, industrial open circuits
- Displacement
- 140 mL/r
- Rated pressure
- 34.3 MPa
K3V180S
K3V180S single pump, industrial open circuits
- Displacement
- 180 mL/r
- Rated pressure
- 34.3 MPa

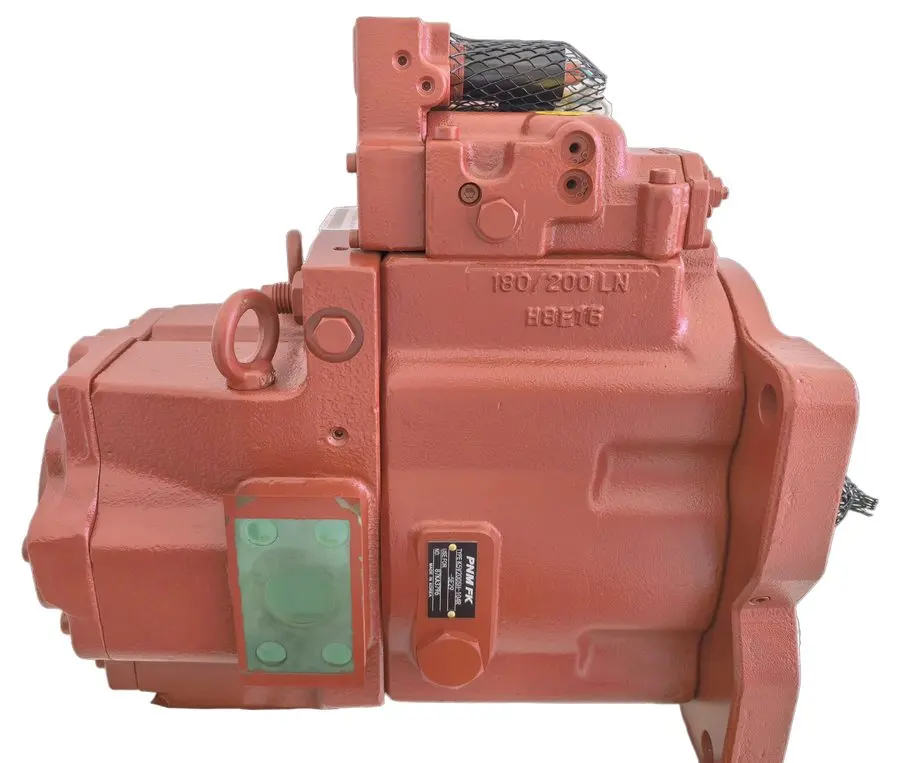

K3V280SH
K3V280SH single pump, large open-circuit equipment
- Displacement
- 280 mL/r
- Rated pressure
- 34.3 MPa

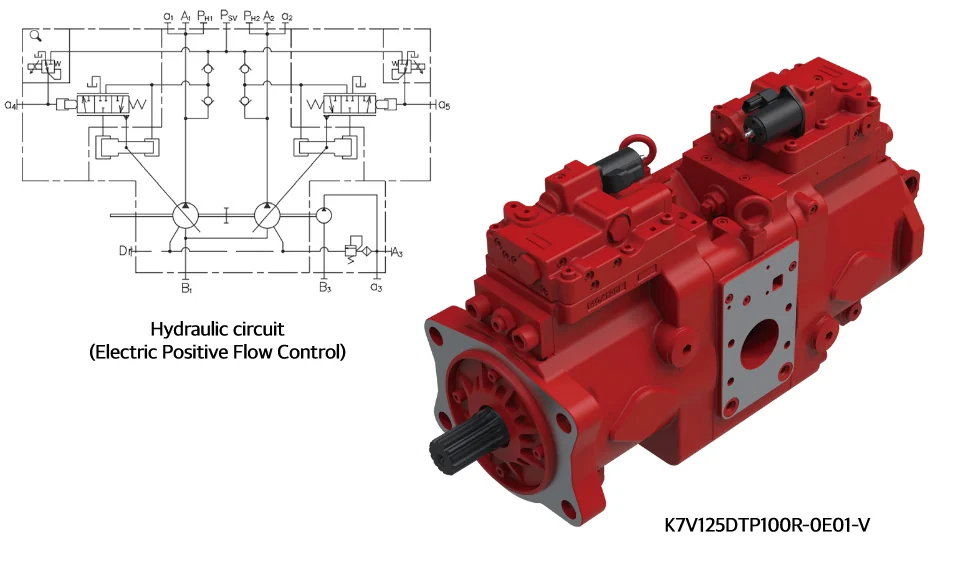

K7V125
K7V125 series axial piston pump, harsher working environments, open circuits
- Displacement
- 125 mL/r (max. 130)
- Rated pressure
- 35 MPa
K5V212
K5V212 series axial piston pump, 214 mL/r, open-circuit / construction machinery
- Displacement
- 214 mL/r
- Rated pressure
- 34.3 MPa
K7V63
K7V63 series axial piston pump, 65 mL/r, open-circuit / construction machinery
- Displacement
- 65 mL/r
- Rated pressure
- 35.0 MPa
K7V140
K7V140 series axial piston pump, 140 mL/r, open-circuit / construction machinery
- Displacement
- 140 mL/r
- Rated pressure
- 35.0 MPa
K7V160
K7V160 series axial piston pump, 160 mL/r, open-circuit / construction machinery
- Displacement
- 160 mL/r
- Rated pressure
- 35.0 MPa
K7V180
K7V180 series axial piston pump, 180 mL/r, open-circuit / construction machinery
- Displacement
- 180 mL/r
- Rated pressure
- 35.0 MPa
K7V240
K7V240 series axial piston pump, 242 mL/r, open-circuit / construction machinery
- Displacement
- 242 mL/r
- Rated pressure
- 35.0 MPa
K7V280
K7V280 series axial piston pump, 280 mL/r, open-circuit / construction machinery
- Displacement
- 280 mL/r
- Rated pressure
- 35.0 MPa
F5SP28
F5SP28 series swash plate axial piston pump, 5-8 t class equipment
- Series
- F5SP28 series swash plate axial piston pump, 5-8 t class equipment
K3V280DTH
K3V280DTH tandem pump, 280 mL/r class, open-circuit equipment
- Series
- K3V280DTH tandem pump, 280 mL/r class, open-circuit equipment
Swing motors
14
M5X130CHB
M5X130 swing motor / M5X130-FRG11 / FRG14 swing device, 12–15 t hydraulic excavator
- Displacement
- 121.6 / 129 / 129.2 cm³ (motor variants)
- Rated pressure
- 34.3 MPa
M5X180CHB
M5X180 swing motor / M5X180-FRG14 / FRG20 swing device, 20–25 t hydraulic excavator
- Displacement
- 148.5 / 169.4 / 180.1 cm³ (motor variants)
- Rated pressure
- 34.3 MPa

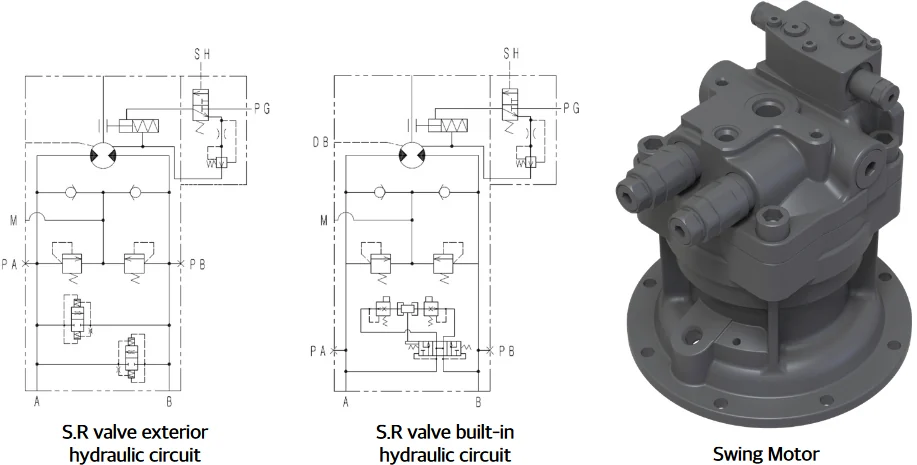

M5X80
M5X80 swing motor, 79 cm³, 33 MPa rated
- Displacement
- 79 cm³
- Rated pressure
- 33 MPa
M5X250
M5X250 swing motor, 250.1 cm³, 33 MPa rated
- Displacement
- 250.1 cm³
- Rated pressure
- 33 MPa
FSM24A
FSM24A swing device series - swing motor with reduction gear
- Series
- FSM24A swing device series - swing motor with reduction gear
FSM28A
FSM28A swing device series - swing motor with reduction gear
- Series
- FSM28A swing device series - swing motor with reduction gear
FSM30A
FSM30A / FSM48A swing device series - swing motor with reduction gear
- Series
- FSM30A / FSM48A swing device series - swing motor with reduction gear
FSM30B
FSM30B swing device series - swing motor with reduction gear
- Series
- FSM30B swing device series - swing motor with reduction gear
FSM32A
FSM32A swing device series - swing motor with reduction gear
- Series
- FSM32A swing device series - swing motor with reduction gear
FSM44A
FSM44A swing device series - swing motor with reduction gear
- Series
- FSM44A swing device series - swing motor with reduction gear
FSA80-17A36
FSA80-17A36 swing device, 80 series with reduction gear
- Series
- FSA80-17A36 swing device, 80 series with reduction gear
FSA80-18A12
FSA80-18A12 swing device, 80 series with reduction gear
- Series
- FSA80-18A12 swing device, 80 series with reduction gear
FSA100-17A22
FSA100-17A22 swing device, 100 series with reduction gear
- Series
- FSA100-17A22 swing device, 100 series with reduction gear
F5X80-FRG70
F5X80-FRG70 swing device - F5X80 motor with FRG70 reduction gear
- Series
- F5X80-FRG70 swing device - F5X80 motor with FRG70 reduction gear
Travel drives
8
FDNB08
Travel drive assembly — swash plate piston motor + two-stage planetary reducer
- Application class
- 5–6 t excavator
- Max flow
- 57.8 L/min

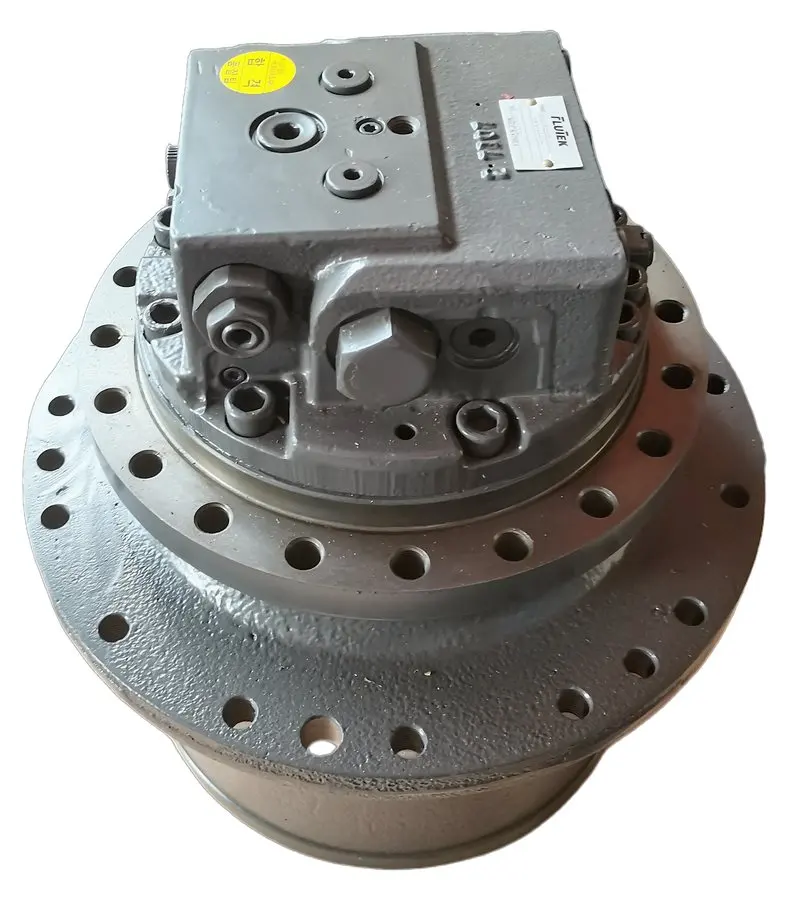

FDNB12
Travel drive assembly — swash plate piston motor + two-stage planetary reducer
- Application class
- 8–10 t excavator
- Max flow
- 55 L/min

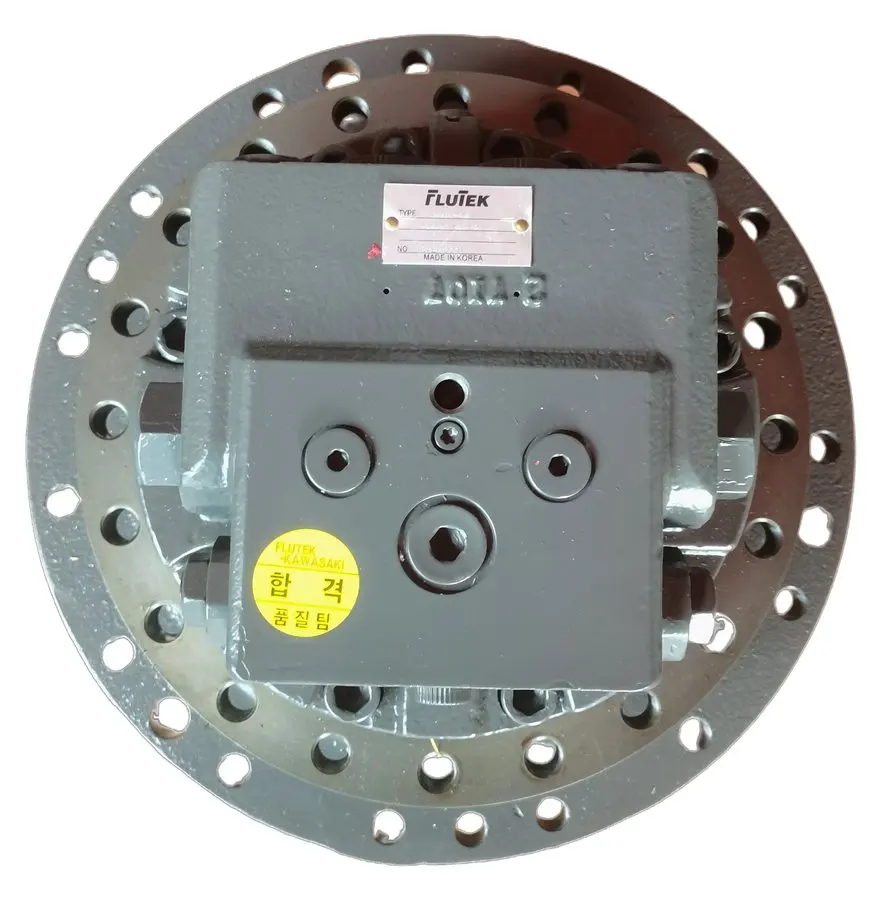

FTD26
Travel drive assembly — swash plate piston motor + two-stage planetary reducer
- Application class
- 13–16 t excavator / drilling rig / crawler crane
- Max flow
- 138.6 L/min
FTD45
Travel drive assembly — swash plate piston motor + two-stage planetary reducer
- Application class
- 18–22 t excavator / drilling rig / crawler crane
- Max flow
- 252 L/min
FTD48
Travel drive assembly — swash plate piston motor + two-stage planetary reducer
- Application class
- 22–26 t excavator / drilling rig / crawler crane
- Max flow
- 252 L/min
FTD70
FTD70 travel drive assembly, 28~34 t class, cross-referenced to NABTESCO GM60VA / DOOSAN TM60VC/VD / KAYABA MAG230VP-6000
- Application class
- 28~34 t excavator / drilling rig / crawler crane
- Output torque
- max. 70,000 N·m (7,140 kgf·m)
FTD80
FTD80 travel drive assembly, 36~42 t class, cross-referenced to NABTESCO GM70VA / DOOSAN TM70VC/VD
- Application class
- 36~42 t excavator / drilling rig / crawler crane
- Output torque
- max. 79,570 N·m (8,110 kgf·m)
FTD100
FTD100 travel drive assembly, 46~52 t class, cross-referenced to NABTESCO GM85VA / DOOSAN TM100VD
- Application class
- 46~52 t excavator / drilling rig / crawler crane
- Output torque
- max. 100,100 N·m (10,210 kgf·m)
